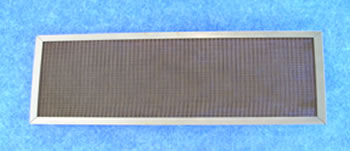

R82 Panels

High Efficiency Viscous Impingement for Electronic Cabinet Filtration

For high efficiency filtration on cabinets employing forced air cooling. Protects against dust, entrained water, oil and water splash. Metal media is not affected by temperature and not subject to mold or mildew.

Construction

Filter media is made from multiple layers of crimped wire screen cloth. Panels can be made from R82A aluminum or R82 steel construction. Aluminum R82 panels can have a protective coating applied such as chemical coat per MIL-C-5541 type 1 or anodize per MIL-A-8625 type 2. Anodized panels will pass a standard 200 hour salt spray test.

Performance

Resistance: .020” water @178 fpm to .060” water at 356 fpm. Average dust arresting efficiency is 70% using standardized dust and testing methods

Sizes

Wide ranges of standard-size R82 filters are available. Filter thicknesses range from 1/4” to 1”.

Installation

It is important no air by allowed to by-pass edge around filter. Felt, neoprene, or other suitable materials should by used to form an adequate seal on the perimeter around the edge of the filter panel.

Servicing

The P56 can be cleaned in water and detergent solution or a suitable solvent. When dry, apply an even coat of adhesive. May be service as often as necessary without impairing efficiency.

RF Shielding

When used in radio or electronic cabinets R82 panels are available with optional RF shielding, thus reducing the amount of R.F. noise produced by static electricity when air passes through the panel. For more information see supplemental sheet, or contact a factory representative.

R82 filters are classified by Underwriters Laboratories Inc.®

Common Sizes, Capacities and Weights

Part Number

Nominal Size

CFM Capacity
@ 356FPM

Shipping Weight
(Est. LBS)

121019-4

121019-8

121019-21

121019-25

121019-56

121019-67

121019-78

121019-80

5x5x1/2

6x9x1/2

10x10x1/2

20x20x1/2

4x5x3/4

8x8x3/4

10x20x3/4

20x20x3/4

25

75

100

400

30

100

300

600

.5

1

2

3.0

1.0

2.0

5.4

9.0


Note: Other sizes available on request.

Panels:

Request a Panels brochure in PDF Format

Falls Filtration Technologies reserves the right to change any model or specification at any time without notice.
