Smoke Eliminator Specifications
| Open-Type Model Number |
Capacity (CFM) |
Max. In-Out Conn. Size |
Min. In- Out Conn. Recommended |

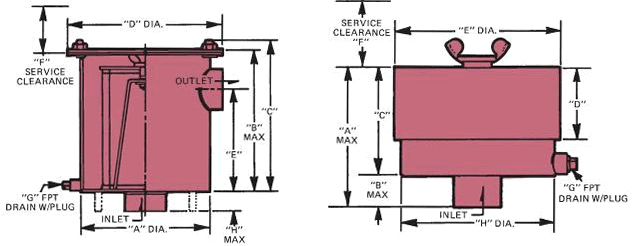

All Dimensions in Inches
|
Approx. Shipping
Weight (lbs) |
Replacement
Element Part No. |
|||||||
A |
B |
C |
D |
E |
F |
G |
H |
||||||
VP2 |
2 |
½” |
1/8” |
2.38 |
.69 |
1.69 |
1.12 |
3.56 |
1.94 |
.12 |
3.19 |
3.00 |
203604-005-0119 |
VP5 |
5 |
¾” |
¼” |
3.50 |
.69 |
2.81 |
1.88 |
3.94 |
2.69 |
.12 |
3.19 |
3.50 |
203604-005-0231 |
VP10 |
10 |
1” |
½” |
4.00 |
.94 |
3.06 |
2.06 |
4.69 |
2.94 |
.12 |
4.31 |
3.75 |
203604-012-0250 |
VP20 |
20 |
2” |
¾” |
4.94 |
1.19 |
3.75 |
2.50 |
5.94 |
3.62 |
.25 |
5.31 |
4.00 |
203604-019-0312 |
VP30 |
30 |
2” |
1” |
6.50 |
1.19 |
5.31 |
3.50 |
5.94 |
5.19 |
.25 |
5.31 |
4.50 |
203604-019-0469 |
VP50 |
50 |
3” |
1” |
8.00 |
1.56 |
6.44 |
4.31 |
7.62 |
6.31 |
.25 |
6.56 |
7.00 |
203604-023-0581 |
VP75 |
75 |
3” |
1 ½” |
10.88 |
1.56 |
9.31 |
6.25 |
7.62 |
9.19 |
.25 |
6.56 |
9.00 |
203604-023-0869 |
VP100 |
100 |
3” |
2” |
11.06 |
1.56 |
9.50 |
6.38 |
9.62 |
9.38 |
.38 |
8.81 |
10.50 |
203604-028-0881 |
VP150 |
150 |
4” |
2” |
11.81 |
1.94 |
10.00 |
6.69 |
12.44 |
9.88 |
.38 |
11.31 |
27.00 |
203604-037-0925 |
VP250 |
250 |
4” |
3” |
14.25 |
1.94 |
12.31 |
8.25 |
16.25 |
12.44 |
.50 |
13.81 |
43.00 |
203604-047-1156 |
VP350 |
350 |
4” |
3” |
18.81 |
1.94 |
16.88 |
11.25 |
16.25 |
17.00 |
.50 |
13.81 |
65.00 |
203604-047-1612 |
VP500 |
500 |
8” |
4” |
19.88 |
2.50 |
17.38 |
11.56 |
20.62 |
17.44 |
.50 |
18.06 |
85.00 |
203604-063-1650 |
VP700 |
700 |
8” |
4” |
22.88 |
2.50 |
20.38 |
13.56 |
24.88 |
20.31 |
.50 |
22.81 |
130.00 |
203604-079-1925 |
VP900 |
900 |
8” |
5” |
26.69 |
2.50 |
24.19 |
16.12 |
24.88 |
24.12 |
.50 |
22.81 |
170.00 |
203604-079-2306 |
VP1200 |
1200 |
8” |
6” |
31.44 |
2.50 |
28.94 |
19.31 |
27.69 |
28.88 |
.75 |
24.81 |
200.00 |
203604-087-2781 |
| Close Circut Type Model Number | Capacity (CFM) |
Max. In-Out Conn. Size |
Min. In- Out Conn. Recommended |
All Dimensions in Inches |
Approx. Shipping Weight (lbs) |
Replacement Element Part No. |
|||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
||||||
CVP20 |
20 |
2” |
¾” |
6.00 |
4.94 |
5.62 |
8.00 |
2.75 |
3.62 |
.25 |
1.19 |
8.25 |
203604-019-0312 |
CVP30 |
30 |
2” |
1” |
6.00 |
6.44 |
7.12 |
8.00 |
4.25 |
5.19 |
.25 |
1.19 |
8.75 |
203604-019-0469 |
CVP50 |
50 |
3” |
1” |
7.62 |
7.69 |
8.38 |
9.62 |
4.75 |
6.31 |
.25 |
1.56 |
12.25 |
203604-023-0581 |
CVP75 |
75 |
3” |
1 ½” |
7.62 |
10.44 |
11.12 |
9.62 |
7.50 |
9.19 |
.25 |
1.56 |
13.00 |
203604-023-0869 |
CVP100 |
100 |
3” |
2” |
9.62 |
10.69 |
11.38 |
11.62 |
7.75 |
9.38 |
.38 |
1.56 |
17.50 |
203604-028-0881 |
CVP150 |
150 |
4” |
2” |
12.50 |
11.19 |
11.88 |
14.50 |
7.75 |
9.88 |
.38 |
1.94 |
33.25 |
203604-037-0925 |
CVP250 |
250 |
4” |
3” |
14.75 |
13.44 |
14.12 |
16.75 |
10.00 |
12.44 |
.50 |
1.94 |
46.25 |
203604-047-1156 |
CVP350 |
350 |
4” |
3” |
14.75 |
17.94 |
18.62 |
16.75 |
14.50 |
17.00 |
.50 |
1.94 |
50.25 |
203604-047-1612 |
CVP500 |
500 |
8” |
4” |
24.75 |
18.56 |
19.25 |
26.75 |
12.75 |
17.44 |
.50 |
2.38 |
124.50 |
203604-063-1650 |
CVP700 |
700 |
8” |
4” |
25.00 |
21.56 |
22.25 |
27.00 |
15.75 |
20.31 |
.50 |
2.38 |
193.00 |
203604-079-1925 |
CVP900 |
900 |
8” |
5” |
25.00 |
25.44 |
26.12 |
27.00 |
19.62 |
24.12 |
.50 |
2.38 |
198.00 |
203604-079-2306 |
CVP1200 |
1200 |
8” |
6” |
27.75 |
30.06 |
31.75 |
29.75 |
24.25 |
28.88 |
.75 |
2.38 |
243.50 |
203604-087-2781 |
Falls Filtration Technologies reserves the right to change any model or specification at any time without notice.
